Rapid Ref : 08801X

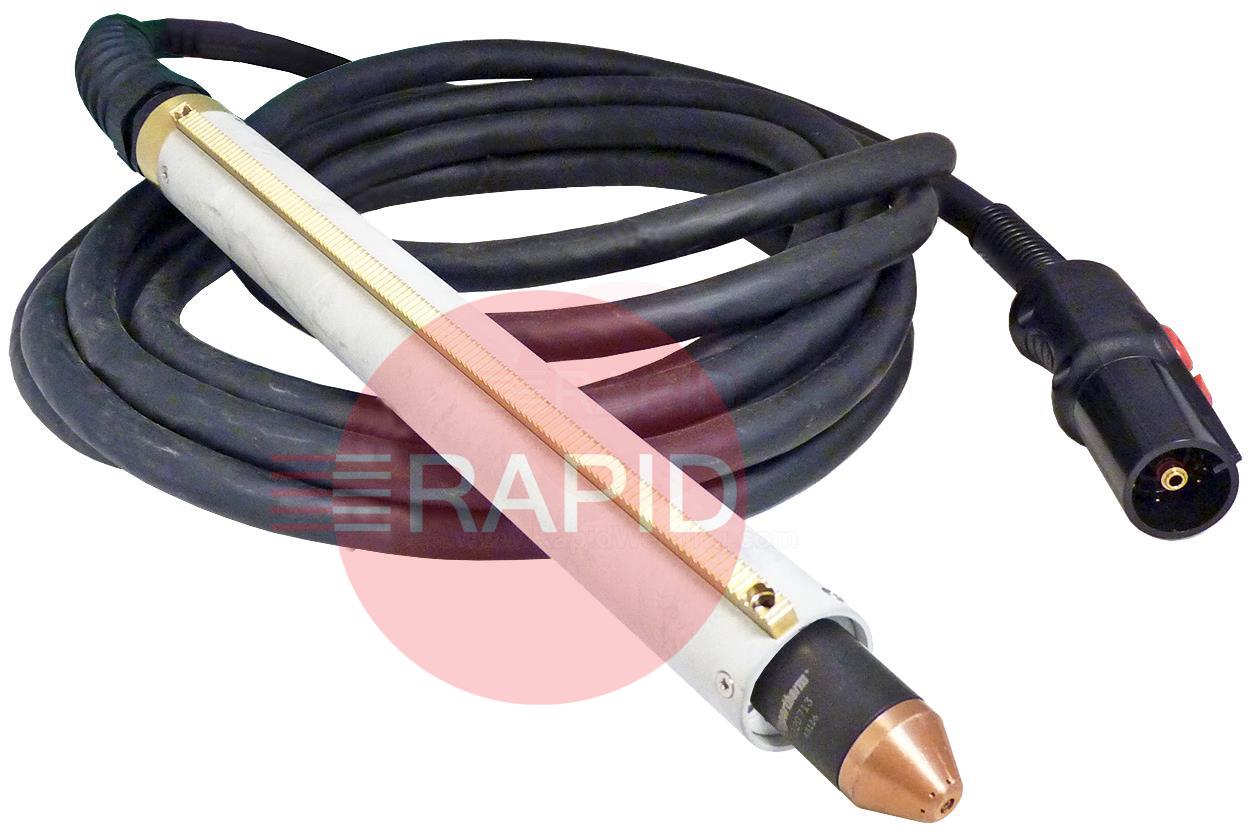

Hypertherm T45M Machine Torch Assembly, for Powermax 45
08801X

Name: Hypertherm T45M Machine Torch Assembly, for Powermax 45
SKU: 08801X

Select Option

Prices From £853.13 ex VAT

Shop Parts

Powermax 125 Machine Systems FAQs

Straight answers to the questions people ask most when choosing a top-end plasma system for mechanised cutting.

What is a high-power machine plasma system used for?

It is used on cutting tables, gantries, bevel heads, pipe cutters and robotic cells that need to cut thick plate quickly and repeatably. The mechanised torch holds a steady height and speed, giving more consistent edges than hand cutting.

It suits steel fabricators, heavy engineering and contract cutters. If you only cut a few parts by eye, a hand system may be simpler.

How does torch height control work?

A height controller reads the arc voltage and raises or lowers the torch to keep a constant gap between torch and plate. This keeps cut quality and bevel angle consistent as plate warps, and extends consumable life.

It needs a stable voltage signal from the plasma system, so check that your system and controller support each other, and test on scrap plate first.

How long should the torch lead be?

It should reach the whole travel of the gantry or carriage without being stretched or snagged. A lead that is too short limits movement and wears quickly; a lead that is too long adds clutter.

Use a drag chain or support on larger tables, and avoid coils, tight bends and pinch points.

How do I get a clean, square edge?

Edge quality depends on current, travel speed, stand-off height, consumable condition and air quality. Use the maker's cut chart as a starting point, then adjust on scrap plate. Slow speeds leave dross and fast speeds leave it trailing behind.

Remember that plasma edges have a natural slight angle, and worn consumables make it worse. Replace them early.

See all 6 questions for this category
