Rapid Ref : 058519

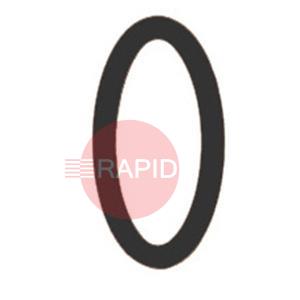

Hypertherm Torch O-Ring
058519

Name: Hypertherm Torch O-Ring
SKU: 058519
Price: 1.44 GBP

£1.44 EX VAT

SSP Suggested Selling Price = £1.65 YOU SAVE £0.21

Genuine Hypertherm O-Ring.

Duramax Series FAQs

Questions buyers ask when choosing, fitting and looking after replacement consumables for this style of plasma cutting torch.

What are the consumable parts in a plasma torch and what does each one do?

A typical plasma torch consumable stack has an electrode, a nozzle, a swirl ring, a retaining cap and usually a shield. The electrode carries the current and wears with every arc start. The nozzle shapes and constricts the arc. The swirl ring spins the gas around the electrode, and the retaining cap holds the parts together.

The shield protects and cools the other parts, especially the nozzle, from molten spatter. Some torches combine several of these parts into a single cartridge, so check your torch manual for the exact layout.

How do I make sure I choose the right consumables for my torch?

Start with the torch and power source data plate and the maker's consumable chart in the manual. Consumables are made for a specific torch design, so a part that looks similar may not seat, seal or carry the current properly.

Match the part to the amperage you will cut at. Low-amperage parts should not be used for high-amperage cutting, or the other way round, because the orifice size and cooling are designed for a particular current range. If the chart is unclear, our team can help you identify the part from the torch type.

Should I change the nozzle and electrode together?

Usually yes. The nozzle and electrode wear together and an old part can spoil the life and cut quality of a new one, so makers generally recommend changing them as a set.

A nozzle should be replaced when the orifice is nicked, out of round or has rounded edges, or when the cut becomes angled, rough or covered in dross. Look at the orifice in good light. If the hole is no longer a clean circle, replace it rather than trying to clean it up.

What is different about gouging consumables?

Gouging removes metal from the surface instead of cutting through it, for example to remove a weld or a defect. Gouging nozzles generally have a wider orifice that gives a wider, softer arc, and some torches use a dedicated gouging shield as well.

Gouging parts are made for a particular torch and current range, so use the parts the maker's chart lists for your torch, current and task. Do not fit gouging parts for through-cutting or the reverse, as cut quality will suffer.

See all 6 questions for this category
