    Rapid Ref : 0001007-VFD

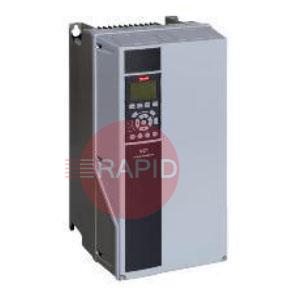

    Plymovent VFD Frequency Inverter
    0001007-VFD

    Select Option
    Prices From £1742.61 ex VAT

    Frequency inverter including power-line filter and main switch to regulate the extraction volume of a central filter system. Input signal coming from IF-15 or PT-1000. Insulation class: IP 55.

    Fan equipment for fume extraction is often used without speed of flow control. Instead, flow is traditionally controlled by throttling with a valve or damper or worse no control at all. When flow is controlled without regulating the motor speed, the fan motor continuously runs at full speed. Because welding fume control systems rarely require maximum flow, a system operating without speed control wastes significant amounts of energy over most of its operating lifetime.

    Using a variable frequency drive (VFD) to control the motor speed can save up unexpected amounts of energy and consequently also money, there are also the following advantages:

    • Decrease in carbon footprint
    • Less sound pressure
    • Longer filter life
    • Less compressed air consumed for filter cleaning

    Related Items

    Plymovent Control Equipment FAQs

    Straight answers to the questions people ask most about controls for welding fume extraction systems.

    What does fume extraction control equipment actually do?icon-minus-redicon-plus-red

    Control equipment switches extraction fans and dampers on and off, and can adjust the airflow to match what is happening in the workshop. Instead of a fan running at full power all day, it runs only when and where extraction is needed.

    This cuts wasted energy, reduces noise and wear, and keeps heated air in the building rather than blowing it outside. It ranges from simple manual switches to fully automatic systems.

    How does a system start when I begin welding?icon-minus-redicon-plus-red

    There are several methods. Some systems detect that an extraction arm has been pulled out or a damper opened. Others use a sensor linked to the welding machine, or a switch on the arm, torch or hood.

    Which is suitable depends on the extraction layout and the work. Check that the control method fits your equipment and that the system starts reliably before the fume is produced.

    Can I run several extraction points from one fan?icon-minus-redicon-plus-red

    Yes, in a central system, dampers open and close so air goes only to the points in use. A control unit manages the dampers and the fan speed or switching so the airflow stays suitable.

    The duct design, fan size and controls all have to be matched. An incorrect design can leave some points with weak airflow, so involve a competent installer for the layout.

    Do I need a different control box for different voltages and phases?icon-minus-redicon-plus-red

    Yes. Control equipment is built for specific supply voltages and for single-phase or three-phase supply, and for a range of motor sizes. Using the wrong one can damage the equipment or be unsafe.

    Check the data plate on your fan motor, the supply at the site and the ratings of the control box. If you are unsure, have an electrician or the supplier confirm compatibility before you buy.
