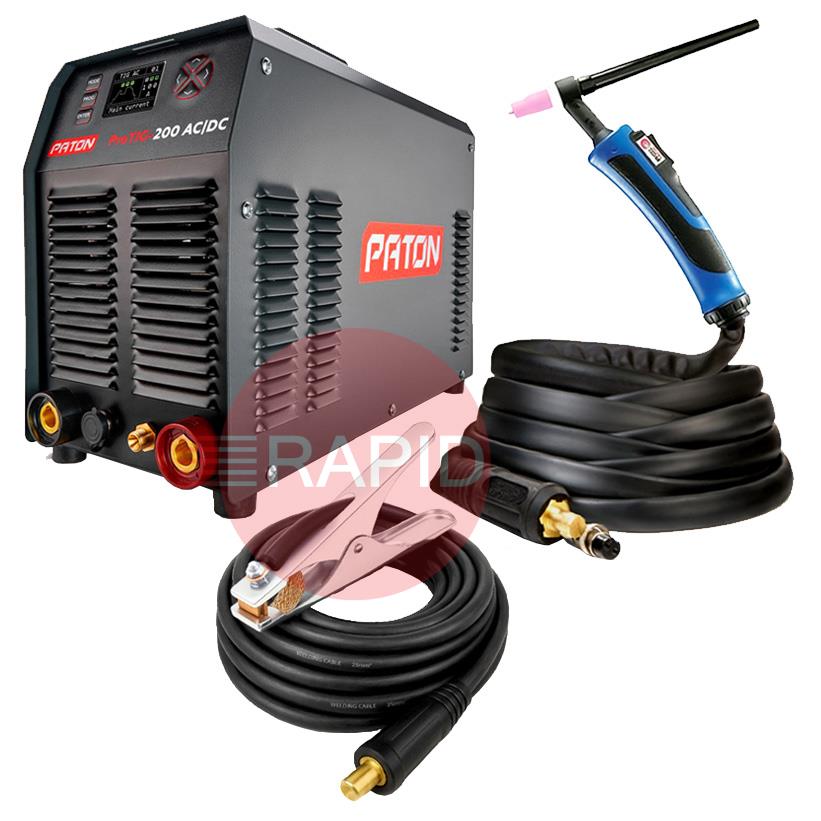

PATON ProTIG-200 AC/DC 200A UK Spec TIG Welder Package - 230v, 1ph
1034020014

Name: PATON ProTIG-200 AC/DC 200A UK Spec TIG Welder Package - 230v, 1ph
SKU: 1034020014
Price: 918.33 GBP

Click here to see what's included

£918.33 EX VAT

SSP Suggested Selling Price = £1380.00 YOU SAVE £461.67

Buy in 3 easy interest free payments of £306.11^† with

Additional items to consider

Shop Parts

All machines supplied by Rapid Welding are load tested, have a gas hose with 3.8" fittings supplied and a UK plug adaptor included.

Professional multi-functional welding machine for welding aluminium, black and stainless steel
Ukrainian Engineering: Built by Paton™ in Europe, one of Europe’s most trusted welding brands with over 60 years of innovation
Advantages: Non-contact arc ignition, RIV welding function (spot welding), the ability to save welding settings, improved arc stabilisation, stepless adjustment of parameters, welding with pulse
2-Year Warranty

Product Details

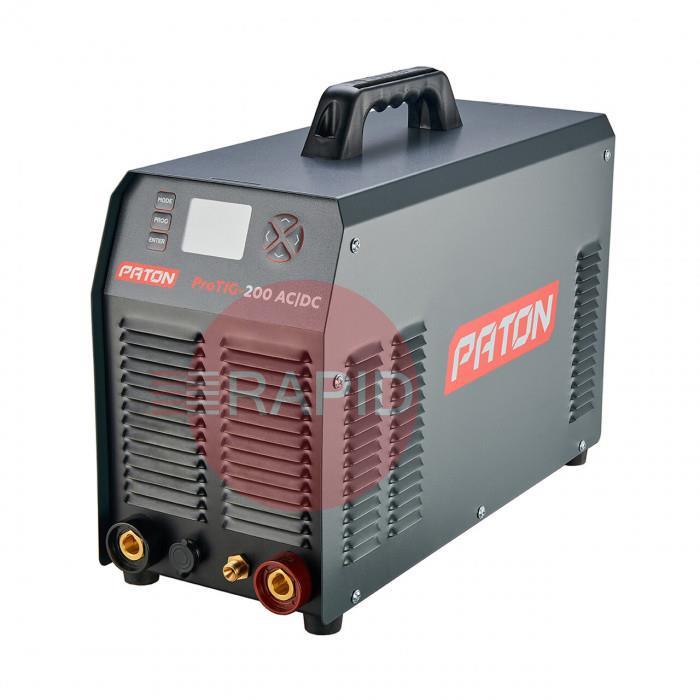

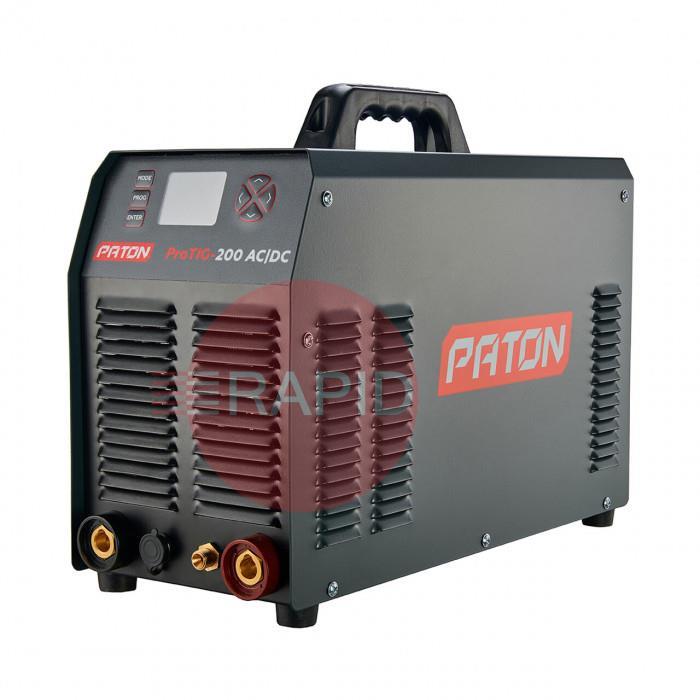

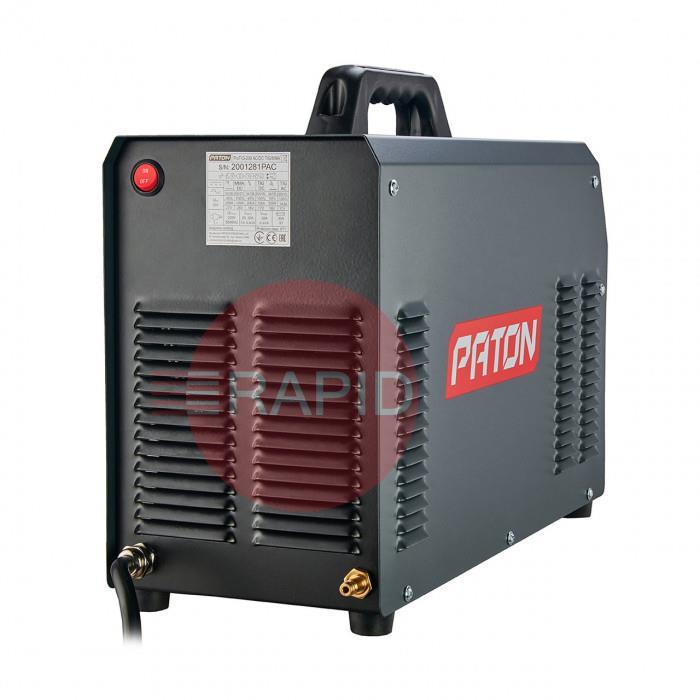

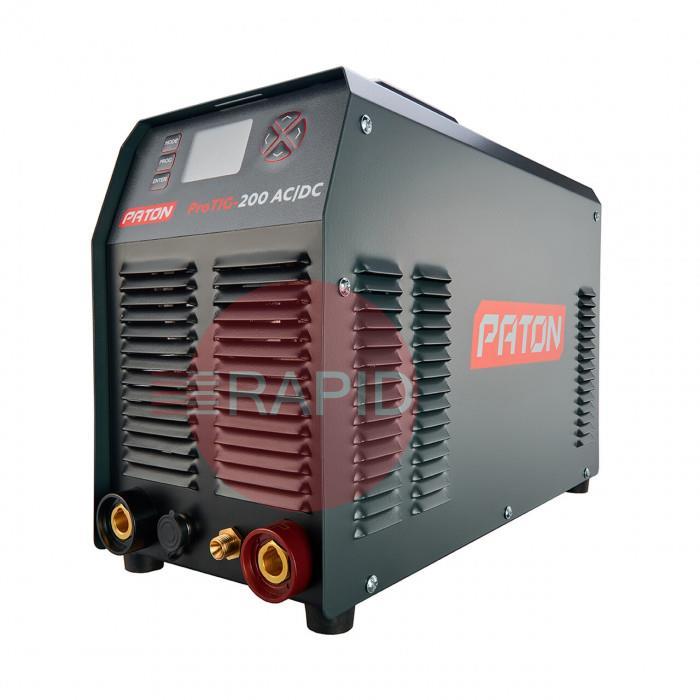

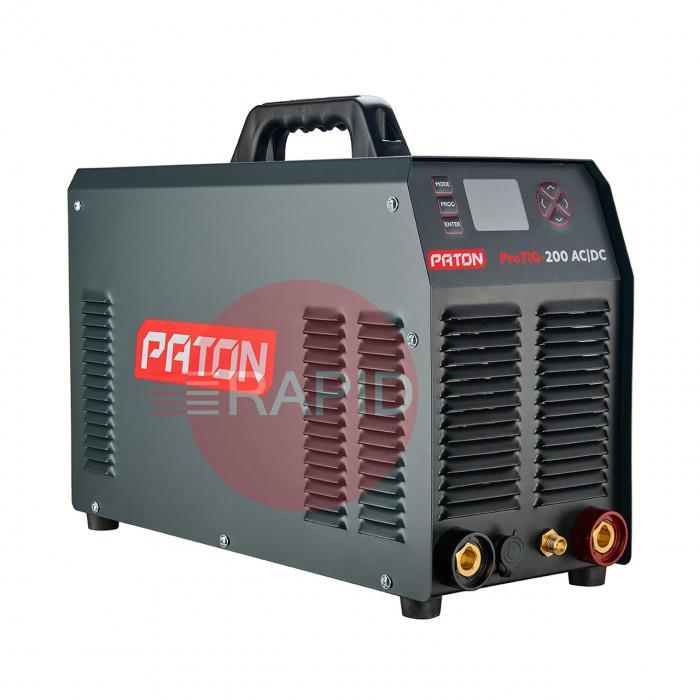

The PATON ProTIG 200 digital inverter welder is optimised for TIG (HF) inert gas shielded arc welding and direct current manual metal arc welding (MMA). The best solution for direct and alternating current welding of a wide range of materials: aluminium, aluminium alloys (TIG AC mode), parts and materials of steel, non-ferrous metals and copper alloys (TIG DC mode). The PATON ProTIG 200 inverter welder offers excellent contactless ignition, a stable, constant electric arc, high-quality welds, and ease of use. The device has a protection module against under- and over-voltage. By increasing the frequency of the input voltage supplied to the transformer, which is several times smaller, the device has dimensions and weight that are several times lower, with the same output parameters, compared to other devices with similar characteristics. The ProTIG 200 features a 45% duty cycle and a 2-year warranty.

Specification

Mains Voltage:	230V
Welding Current Range:	5 - 200A
Duty Cycle:	200A at 40%, 140A at 100%
Nominal Power Consumption:	6.3kVA
Dimensions (L x W x H):	492mm x 199mm x 352mm
Weight:	12.5kg
Protection Class:	IP23
