Rapid Ref : 72704361241

FEIN KBM 65 U Universal Magnetic Drill 65mm 72704361241

£2123.75  EX VAT
SSP Suggested Selling Price = £2316.82  YOU SAVE £193.07
 Buy in 3 easy interest free payments of £707.92 with
Select Option

Metal core drilling unit up to 65mm

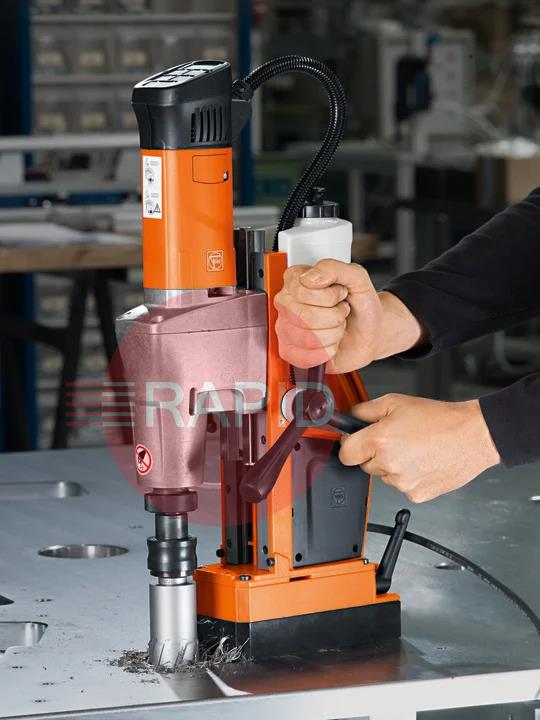

Powerful and very high-performance 2-speed universal magnetic core drill with clockwise/anti-clockwise operation, MT3 tool mounting, fine adjustment and maximum functionality for flexible working in the workshop.

  • Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry and manual trades
  • Perfect power-to-weight ratio thanks to the compact, weight-optimised design and FEIN 1300W high-power motor with tacho electronics for high-speed stability for reliable and economical working
  • With clockwise/anti-clockwise operation, electronic speed setting and a 315mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming
  • Fine adjustment of the drill spindle for convenient tool alignment
  • MT3 tool mounting
  • Simple operating concept avoids mix-ups and can be seen by the user
  • Convenient magnetic holding force display helps the user to reliably position the tool
  • High magnetic holding force
  • Integrated coolant tank delivers long core drill bit lives
  • Feed handwheel can be moved from one side to the other
  • Speed saving "memory function"
  • Personal safety switch

Product Details

Package Includes

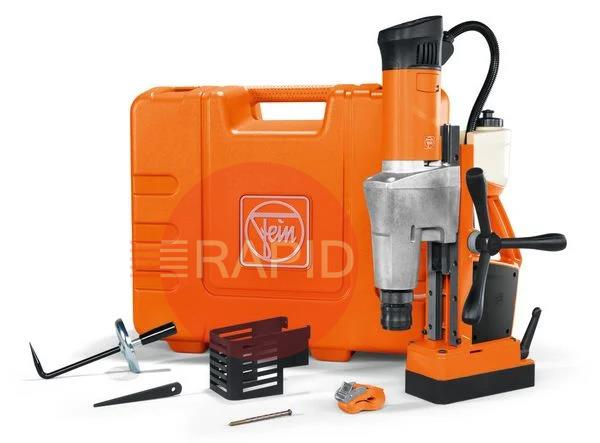

1 coolant tank, 1 centring pin, 1 lashing strap, 1 contact guard, 1 swarf hook, 1 drift key and 1 case.

Specification

Input: 1,300 W W
Output: 730 W
Load speed in speed 1: 120 - 240 rpm
Load speed in speed 2: 260 - 520 rpm
Tool holder: MK 3
Carbide core drill bit max. Ø: 65mm
HSS core drill max. Ø: 45mm
Core drill, drilling depth max.: 50mm
Twist drill max. Ø: 25mm
Tapping: M 20
Countersinking max. Ø: 50mm
Reaming max. Ø: 25mm
Core drill holder: ¾ in Weldon
Changing the core bit: Tool-free
Stroke: 145mm
Total stroke range: 315mm
The adjustment range for drill jigs: 6mm
Swivel range for drill jigs: 7°
Cable with plug: 4m

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   FEIN KBM 50 / 65 Manual Instruction
