Rapid Ref : 72706061000

FEIN KBU 110-4 M Universal Magnetic Drill 110mm - 230v 72706061000

£3373.75 EX VAT

SSP Suggested Selling Price = £3680.45 YOU SAVE £306.70

Please note, this product does not qualify for our standard shipping rates outside of the UK Mainland. Please contact us for shipping rates for this product.

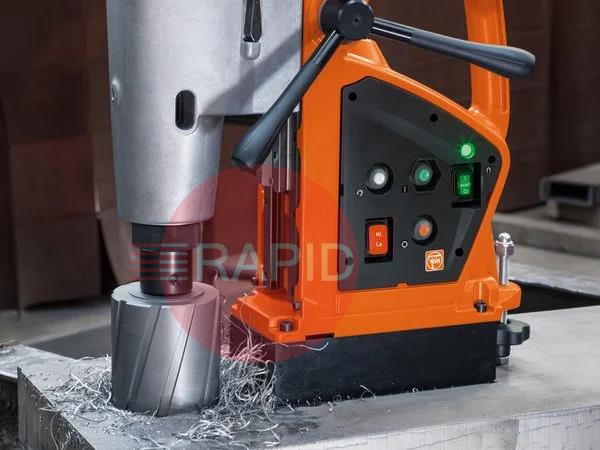

Universal magnetic core drill for up to 110 mm

High-performance and powerful 4-speed universal magnetic core drill with forward/reverse running, MT4 tool mounting and maximum functionality for the toughest drilling jobs in the workshop.

FEIN 1700 W high-power motor with high torque for heavy-duty drilling work.
For tough use thanks to outstanding quality of workmanship and swivel-mounted motor cable protective hose.
Tool with extra-large stroke range for all drilling work, such as core, twist and tap drilling, countersinking and reaming.
Mechanical 4-speed gearbox.
High magnetic holding force.
Torque support for high stability.
Tilt sensor.
Slipping clutch torque.
Convenient magnetic holding force display helps the user to reliably position the tool.
Speed reduction.
Reversible.
MT4 tool mounting.
Integrated coolant tank delivers long core drill bit lives.
Personal safety switch.

Product Details

Package Includes

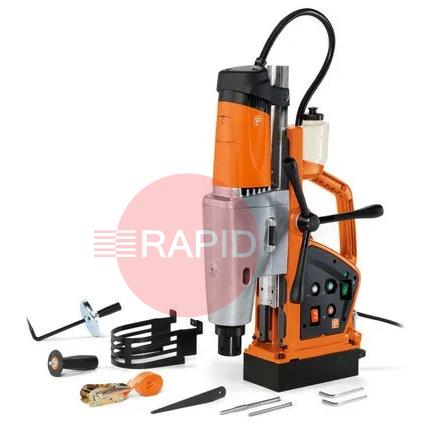

1 coolant tank, 2 centering pins diameter of 6.35 x 125 mm and 7.98 x 184mm, 2 5 & 6 hexagon socket wrenches, 1 safety strap with ratchet, 1 contact guard, 1 additional handle, 1 swarf hook, 1 drift key and 1 case.

Specification

Input: 1,700 W
Output: 850 W
Load speed in speed 1: 60 – 120 rpm
Load speed in speed 2: 90 – 170 rpm
Load speed in speed 3: 150 – 300 rpm
Load speed in speed 4: 230 – 430 rpm
Idling speed in speed 1: 100 – 190 rpm
Idling speed in speed 2: 160 – 290 rpm
Idling speed in speed 3: 270 – 500 rpm
Idling speed in speed 4: 420 – 750 rpm
Tool holder: MK 4
Carbide core drill bit max. Ø: 110 mm
HSS core drill max. Ø: 80 mm
Core drill, drilling depth max.: 100 mm
Twist drill max. Ø: 40 mm
Tapping: M 36
Countersinking max. Ø: 60 mm
Reaming max. Ø: 36 mm
Core drill holder: Weldon 32
Stroke: 280 mm
Total stroke range: 400 mm
Magnetic holding power: 23,000 N
Cable with plug: 4 m
Weight according to EPTA: 35.00 kg
