Rapid Ref : 72732761000

FEIN KBM 50 AUTO QW Universal Automatic Magnetic Drill - 230v 72732761000

£2248.75  EX VAT
SSP Suggested Selling Price = £2453.18  YOU SAVE £204.43

Metal core drilling unit up to 50 mm

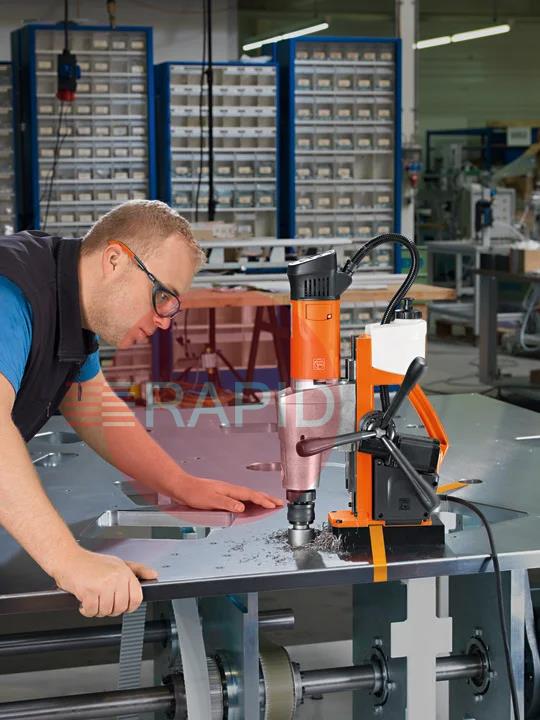

Lightweight, powerful and ingenious 2-speed auto magnetic core drill offering maximum efficiency and minimum physical strain for core drilling in the workshop and on the construction site.

  • Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry and manual trades.
  • Saves time and money when producing a large number of holes thanks to the digitally controlled drill feed.
  • With clockwise/anti-clockwise operation, electronic speed setting and a 315 mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming.
  • Thanks to reproducible and timed drilling times, working hours for commissioned and serial work can be planned.
  • MT3 tool mounting.
  • FEIN high-power motor with stable speed.
  • Simple operating concept avoids mix-ups and can be clearly seen by the user.
  • High magnetic holding force.
  • Convenient magnetic holding force display helps the user to reliably position the tool.
  • Integrated coolant tank delivers long core drill bit lives.
  • Tilt sensor.
  • Speed saving "memory function".
  • Personal safety switch.

Product Details

Package Includes

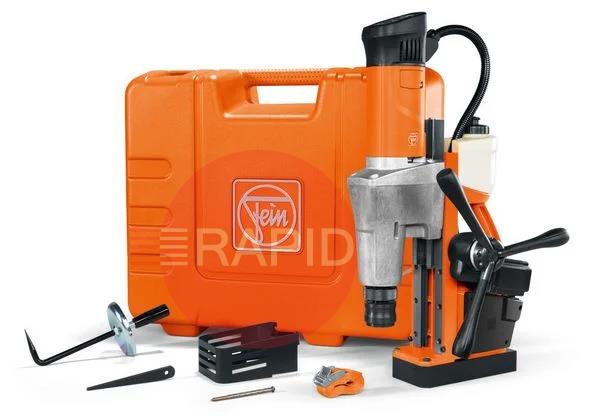

1 coolant tank, 1 centering pin, 1 lashing strap, 1 contact guard, 1 swarf hook, 1 drift key and 1 case.

Specification

* In manual tool mode only

Input: 1,200 W
Output: 610 W
Load speed in speed 1: 130 - 260 rpm
Load speed in speed 2: 260 - 520 rpm
Tool holder: MK 3
Carbide core drill bit max. Ø: 50 mm
HSS core drill max. Ø: 40 mm
Core drill, drilling depth max.: 50 mm
Twist drill max. Ø: 18/23* mm
Tapping: M 16*
Countersinking max. Ø: 50* mm
Reaming max. Ø: 23* mm
Core drill holder: ¾ in Weldon
Changing the core bit: Tool-free
Stroke: 145 mm
Total stroke range: 315 mm
Cable with plug: 4 m

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   FEIN KBM 50 / 65 Manual Instruction
