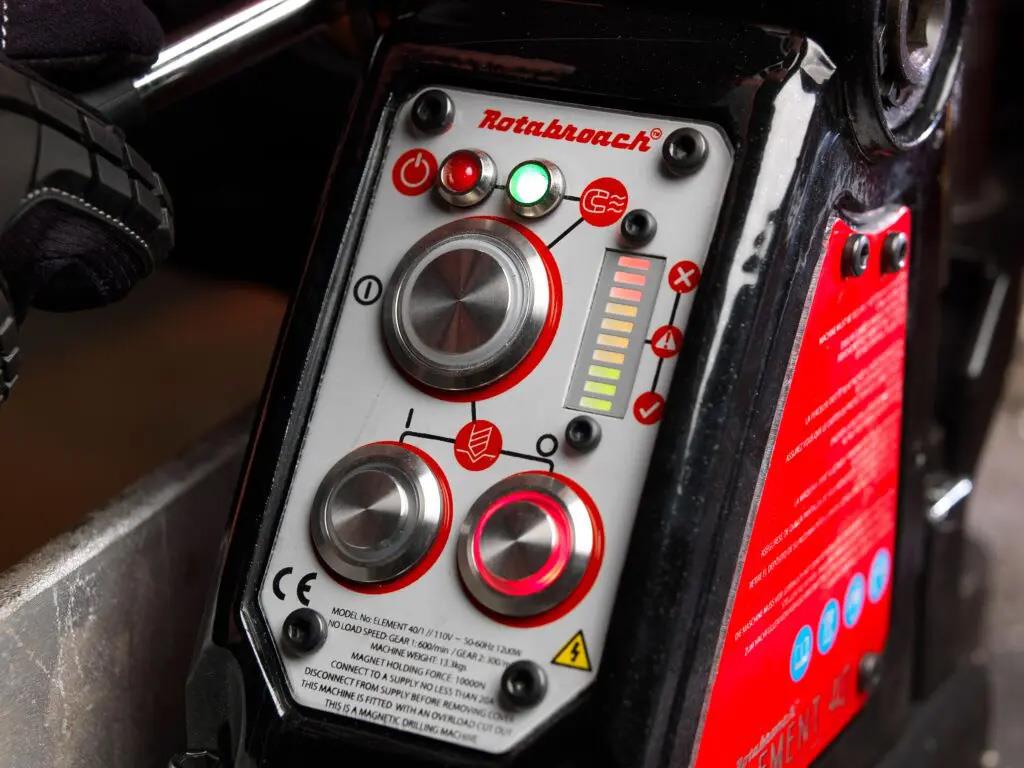

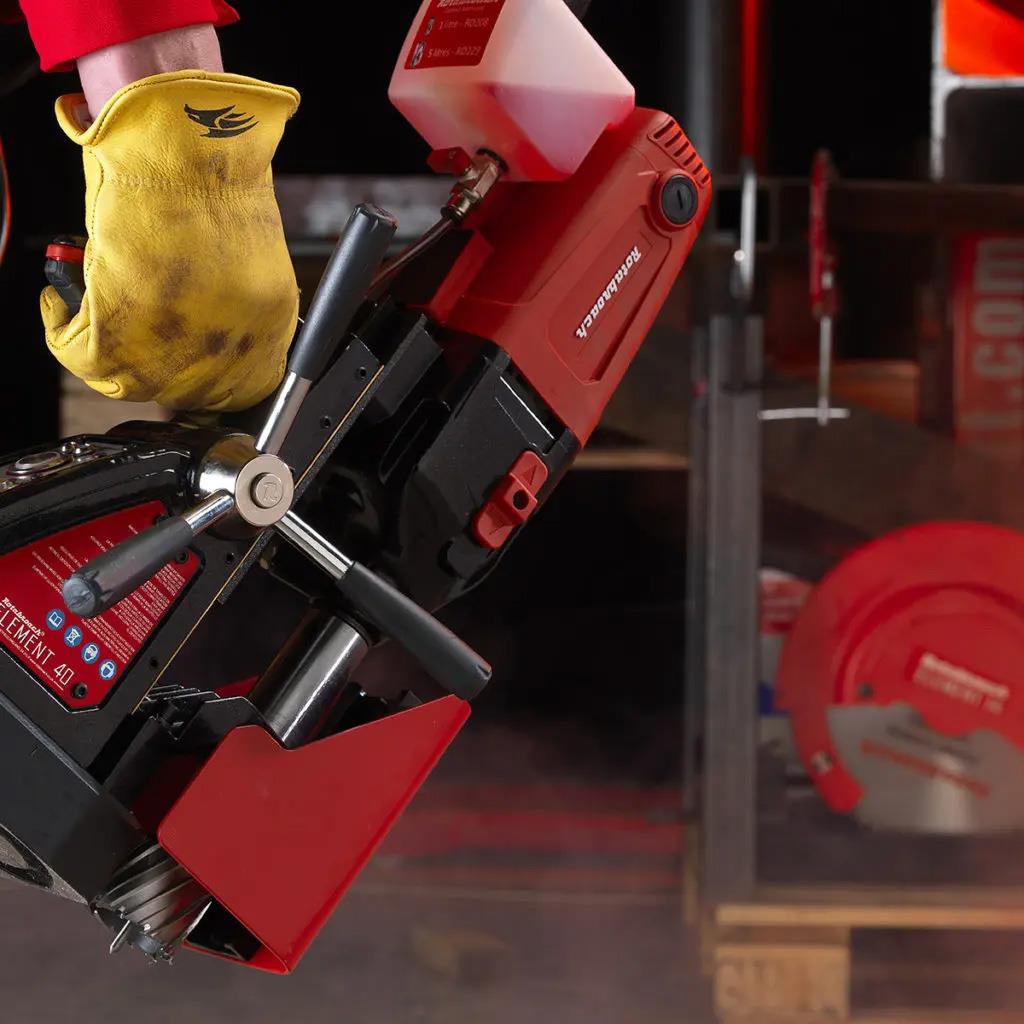

The new Rotabroach Element 40 magnetic drill is a combination of power and portability. The Element 40 is manufactured with a powerful, two-speed mechanical gearbox, optimising performance across its entire capacity range. Although small in size and weight, the Element 40 excels at heavy-duty industrial and fabrication work in the harshest environments. New features include a user-friendly control panel and a lightweight aluminium body weighing just 12kg. The capstan has a quick-release design, allowing easy transfer of operation to the other side of the machine.
Features
- Powerful Motor - increased 1200W motor power for greater efficiency
- Mounted bottle - In-line bottle to save space when operating in small areas
- Ergonomic carry handle
- Two Speed Gearbox
- 40 x 50mm hole cutting capacity

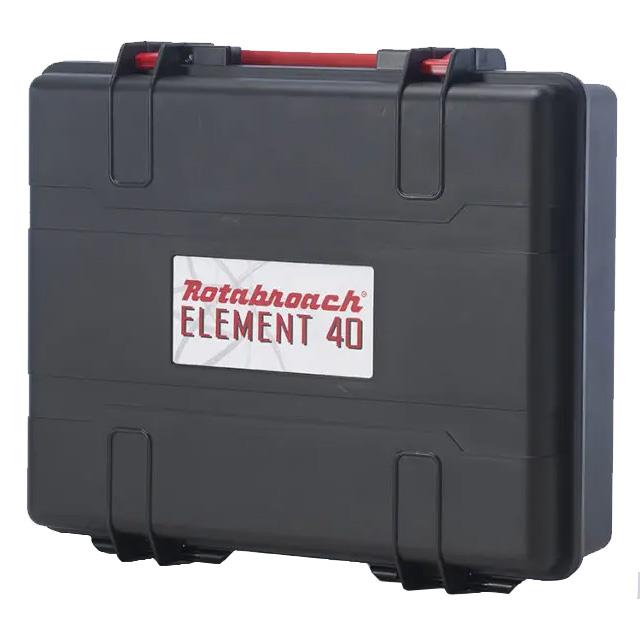

- Comes complete with carry case and accessories

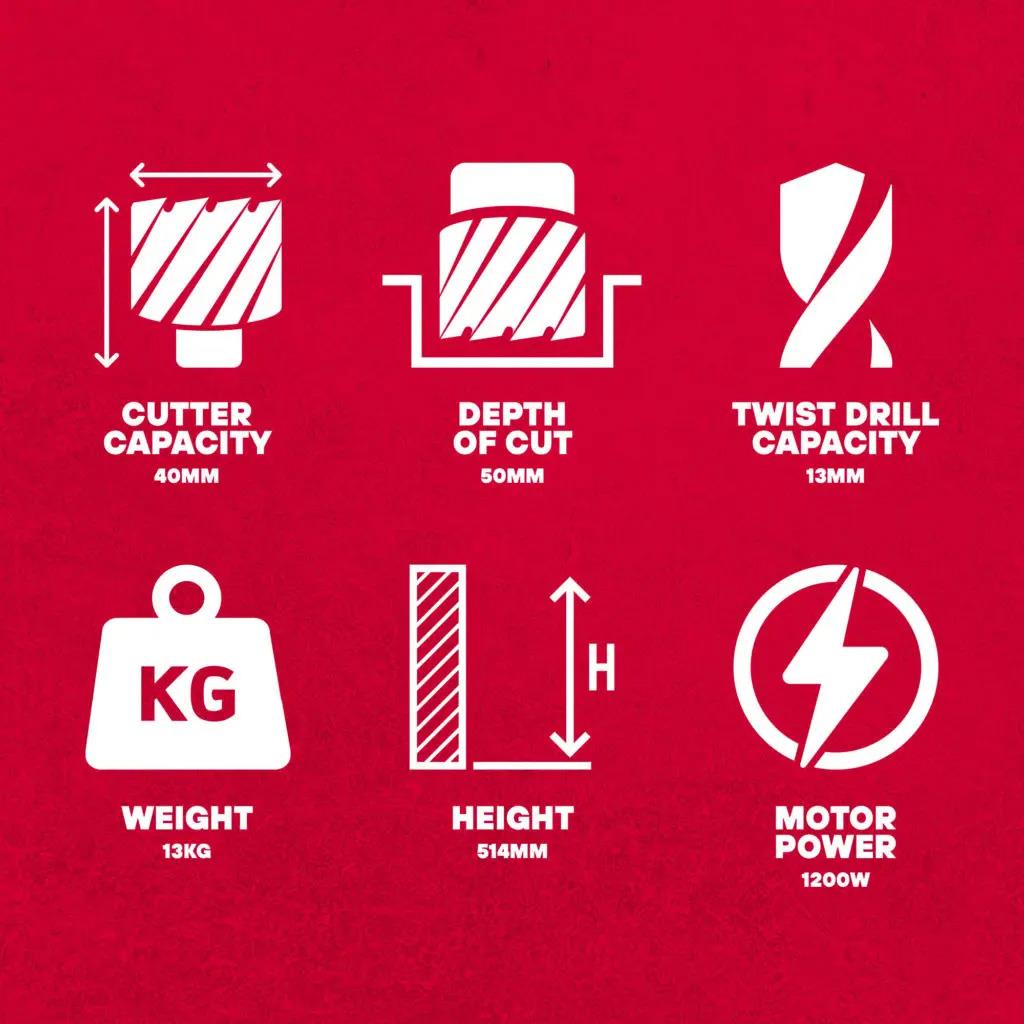

Specification
Motor Specification: 110v full load 12 amps 1200W
No Load RPM: Gear one 600 RPM, Gear two 300 RPM
Max hole cuting capacity: 40mm dia x 50mm Deep
Overall dimensions: 510mm H x 175mm W x 285mm L
Weight: 12.2kg
Magnetic adhesion: 8000N
Safety Features: Cutsmart ™ Technology, Fixed Guard, Internal cable, Flush switches, Mechanical clutch
