  • GP-200-MC  Gullco Rotary Weld Positioner - 230v
Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

Rapid Ref : GP-200-MC

Gullco Rotary Weld Positioner 0.27 - 4.63 RPM GP-200-MC

£3233.00  EX VAT
 Buy in 3 easy interest free payments of £1077.67 with
Select Option

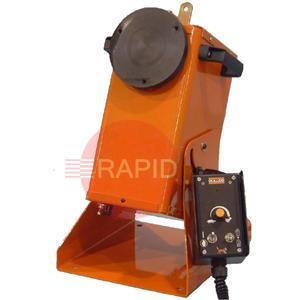

The GP-200-M Welding Positioner is a positive drive rotary turn table complete with a mounting flange, drive and tilt mechanism and Microprocessor pulse width modulation motor control. A low-voltage permanent magnet motor and gearhead power unit assembly drives the welding positioner. The microprocessor motor control enables the operator interface of start, stop, clockwise rotation, neutral, counter clock-wise rotation and infinitely variable control of the speed, within the range of the positioner model.

The weld positioner's rotation speed is electronically controlled using an optical tachometer located on the back of the gear motor. Speeds within the range of the model are infinitely variable in both clockwise and counter-clockwise directions through a rotary speed adjustment potentiometer located on the remote control. Table tilt is manually set at any desired angle, from 0° through 90°, quickly and easily. Safety while using the positioner is greatly enhanced with Gullco’s low voltage (24 V) control and power supply system.

This model includes the standard remote control with the following features:

  • Infinitely variable rotation speed within the model’s speed range
  • Forward / neutral / reverse switch
  • Run/stop switch
  • Speed potentiometer

Product Details

Specification
Rotational Speed: 0.27 - 4.63 RPM
Vertical Table Loading at 3" C of G: 68Kg
Horizontal Table Loading: 132Kg
