Rapid Ref : K14438-1

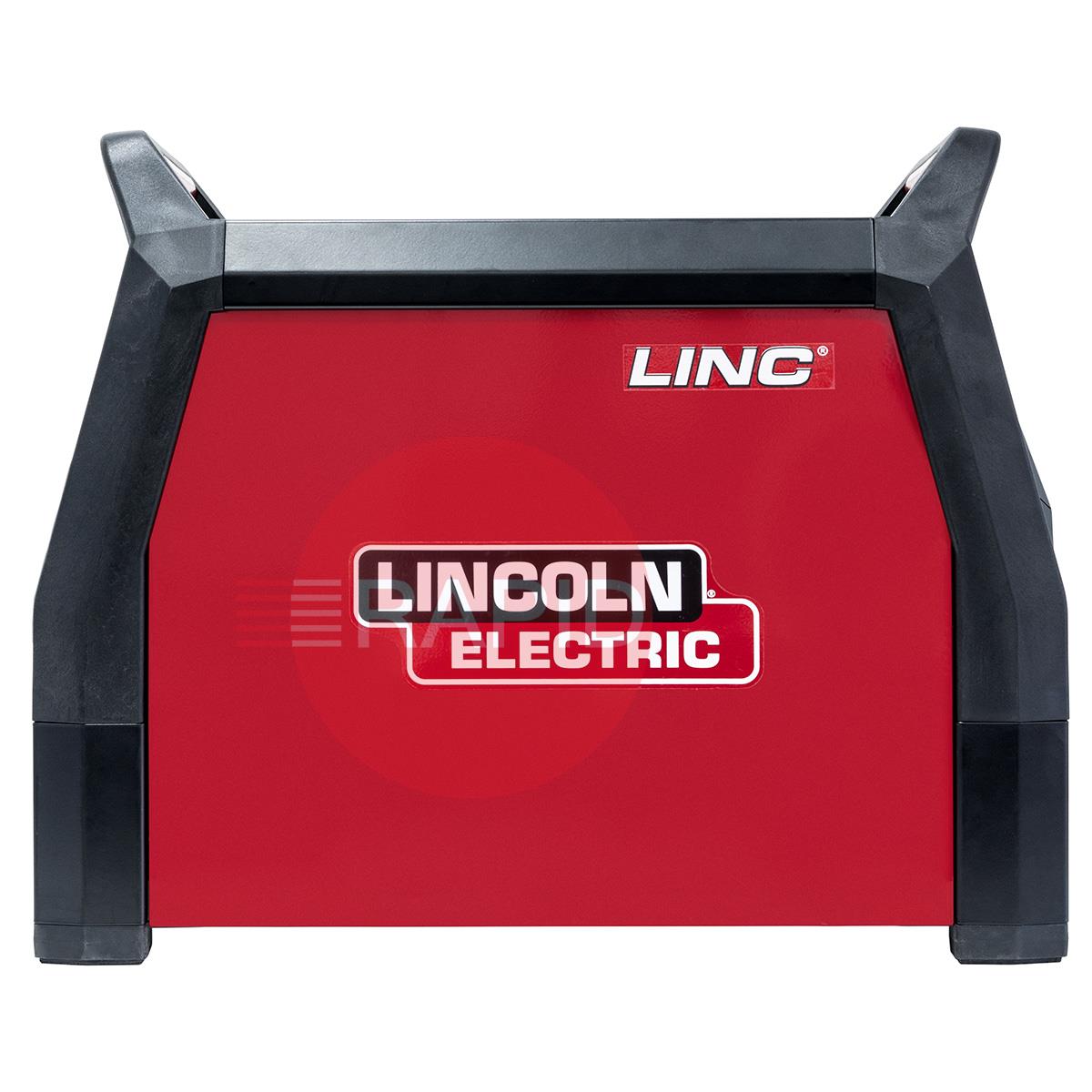

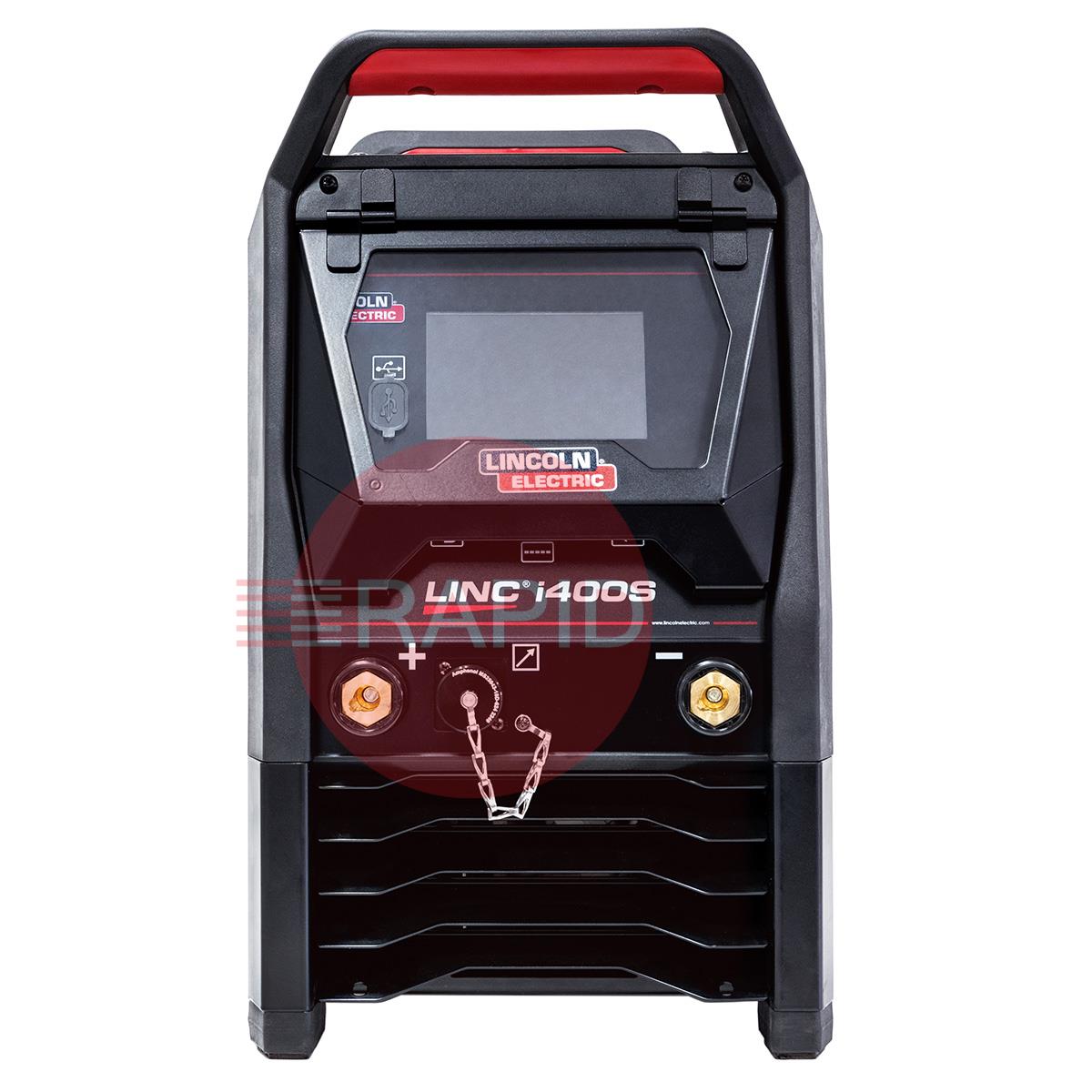

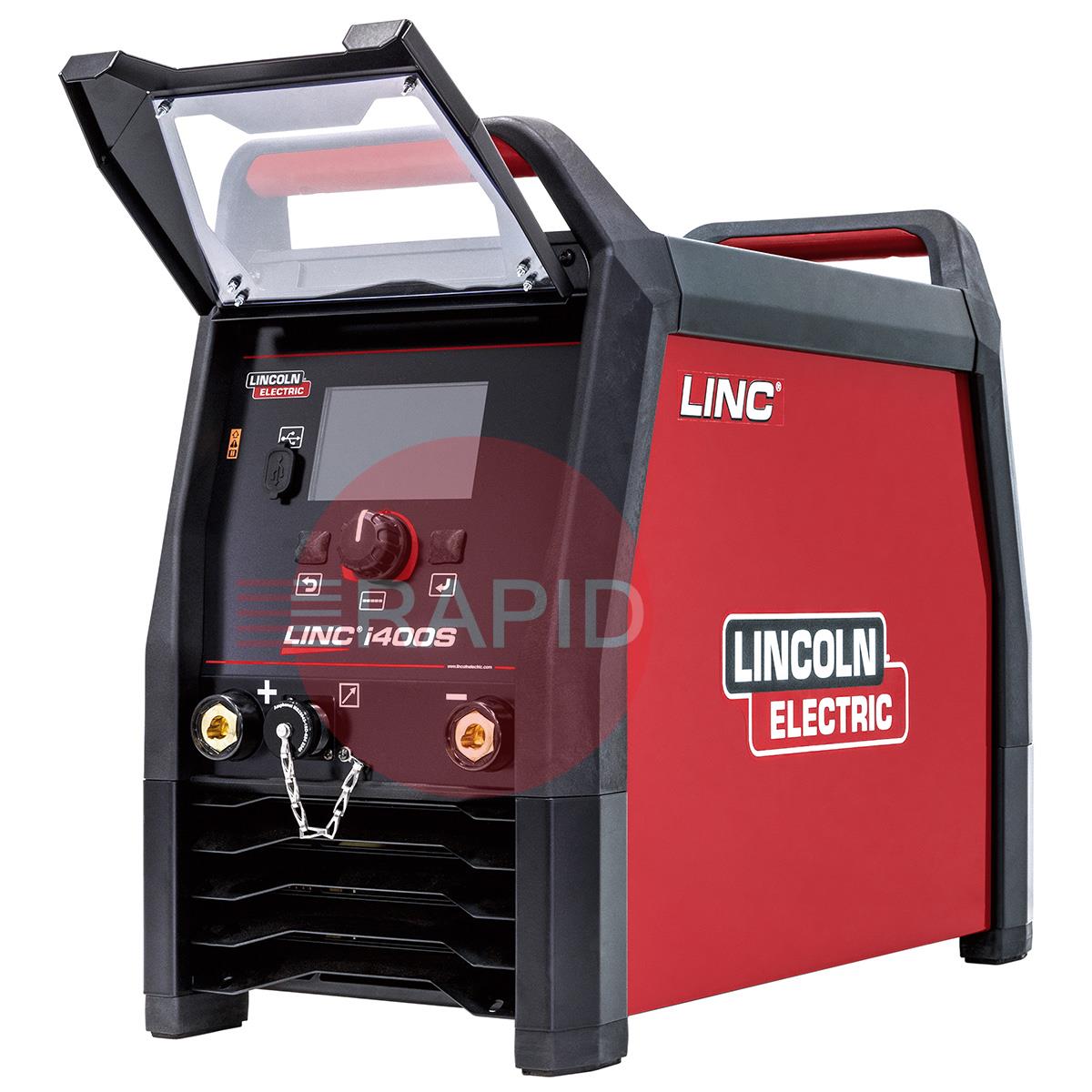

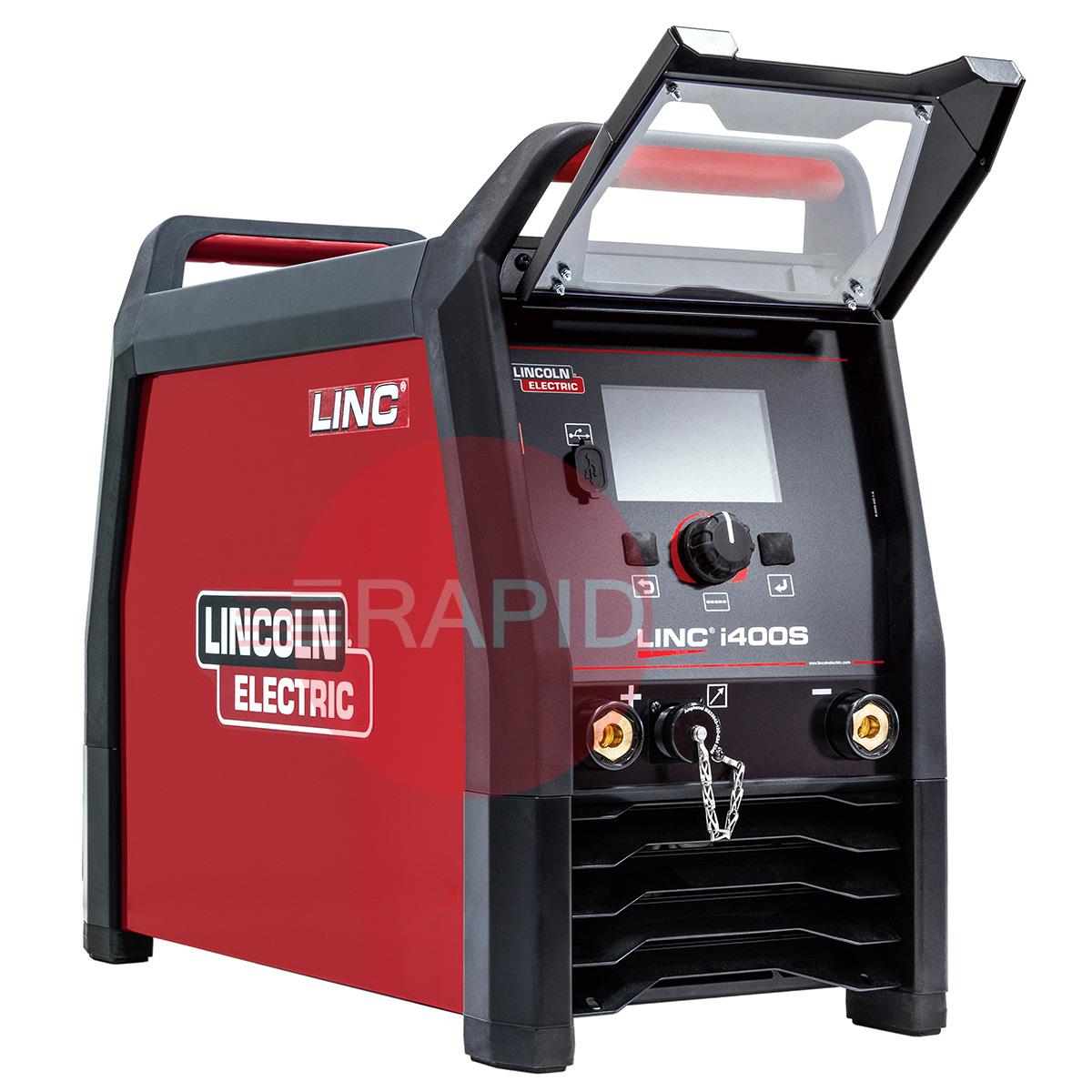

Lincoln LINC i400S DC Arc Welder Power Source - 400v, 3ph
K14438-1

£3200.90  EX VAT
 Buy in 3 easy interest free payments of £1066.97 with

The LINC i400S is a fantastic advancement in industrial welding technology. Its combination of high performance, energy-saving features, and robust design makes it well-suited for challenging environments. The inclusion of in-built communication devices and digital transmission systems, like USBs, is a great addition for monitoring and tracking welding operations efficiently.

  • ECO FRIENDLY – Idle power 21.3W and efficiency > 89.3%
  • PORTABLE DESIGN – Industrial-grade yet lightweight

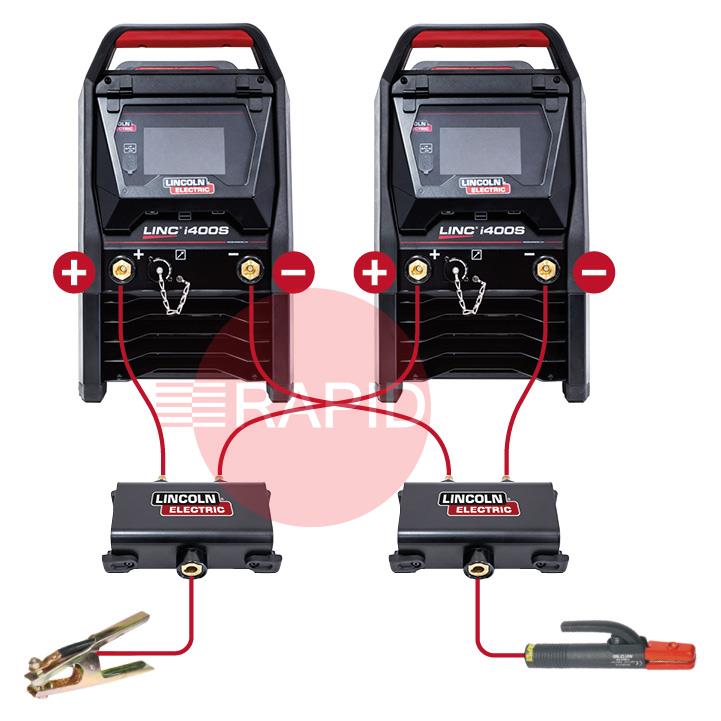

  • HIGH OUTPUT – Up to 800A with paralleling system for two i400S power sources
  • SIMPLIFIED OPERATION - MMA Manual & Synergic Pulse with predefined programs and advanced stick settings
  • EASY TRANSPORT – Kit for cart with two welding machines for single-user transport
  • INDUSTRIAL GRADE – IP23, 3 Year Warranty, no limitation

Product Details

Specification

Input power  400v 3ph/50 Hz +/- 15%
Max. input power (kVA) 12.9 @ 40% (TIG)
17.4 @ 40% (MMA)
Rated output (A) - TIG 400A @ 40%
360A @ 60%
300A @ 100%
Rated output (A) - MMA 400A @ 40%
360A @ 60%
300A @ 100%
Fuse size (A) 25
Open circuit voltage (OCV) 85 (11V VRD)
Dimensions HxWxD (mm) 500 x 294 x 624
Protection / insulation class IP23
Weight (kg) 30
