  • PB05  Inflatable Twin Purge Bag System, 5 (127mm)
Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

Rapid Ref : PB05  Mfr Ref : TP05

Inflatable Twin Purge Bag System, 2 - 12" (51 - 305mm) TP05 PB05

£143.00  EX VAT
 Buy in 3 easy interest free payments of £47.67 with
Select Option

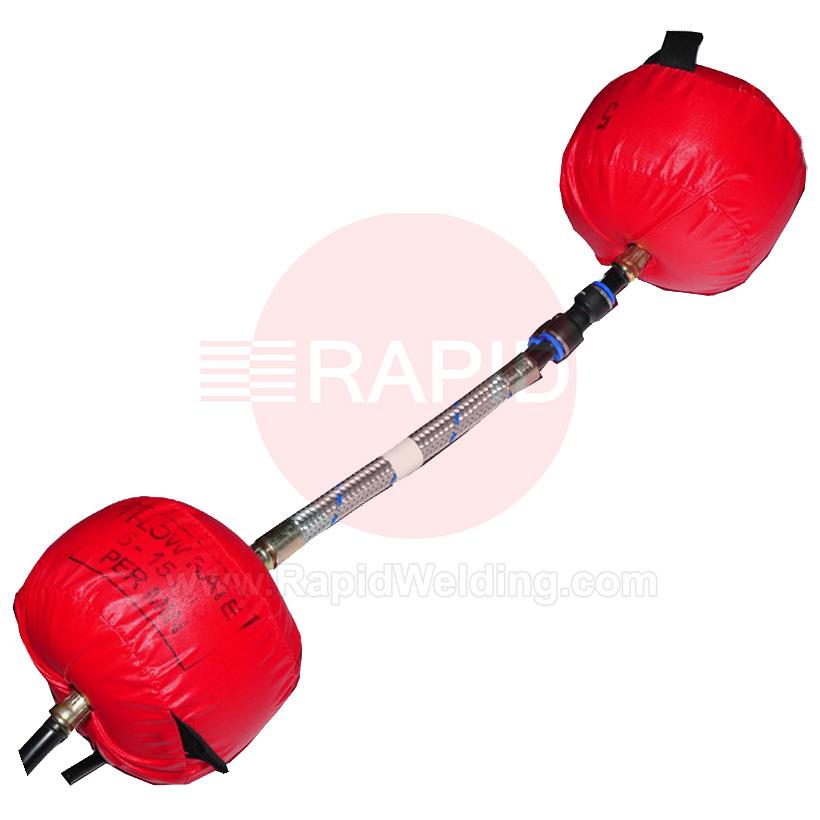

Twin Bag Purging Systems consist of two inflatable bags connected by a spinal tube and a pressure valve. The system is positioned by viewing the luminous tape through the weld joint gap. E-Z ZONE TAPE is used to seal the weld gap and purge gas flow can commence at up to 10 Ltr/min.

The bags inflate and a seal is created on either side of the weld joint. The pressure valve then releases gas into the weld chamber and the purging process commences.  By using a GBC Oxygen Monitor to constantly measure the oxygen content in the weld chamber the welder will know when to reduce the gas flow to c. 5 Ltr/min and commence welding.

The system is left in position post-welding with gas flowing until the weld joint temperature drops to below oxidation levels, then the purge gas feed is disconnected, the bags deflate, and the system can be withdrawn.

  • Size: 5" (127mm)
  • Expansion Range: 103 - 135mm
