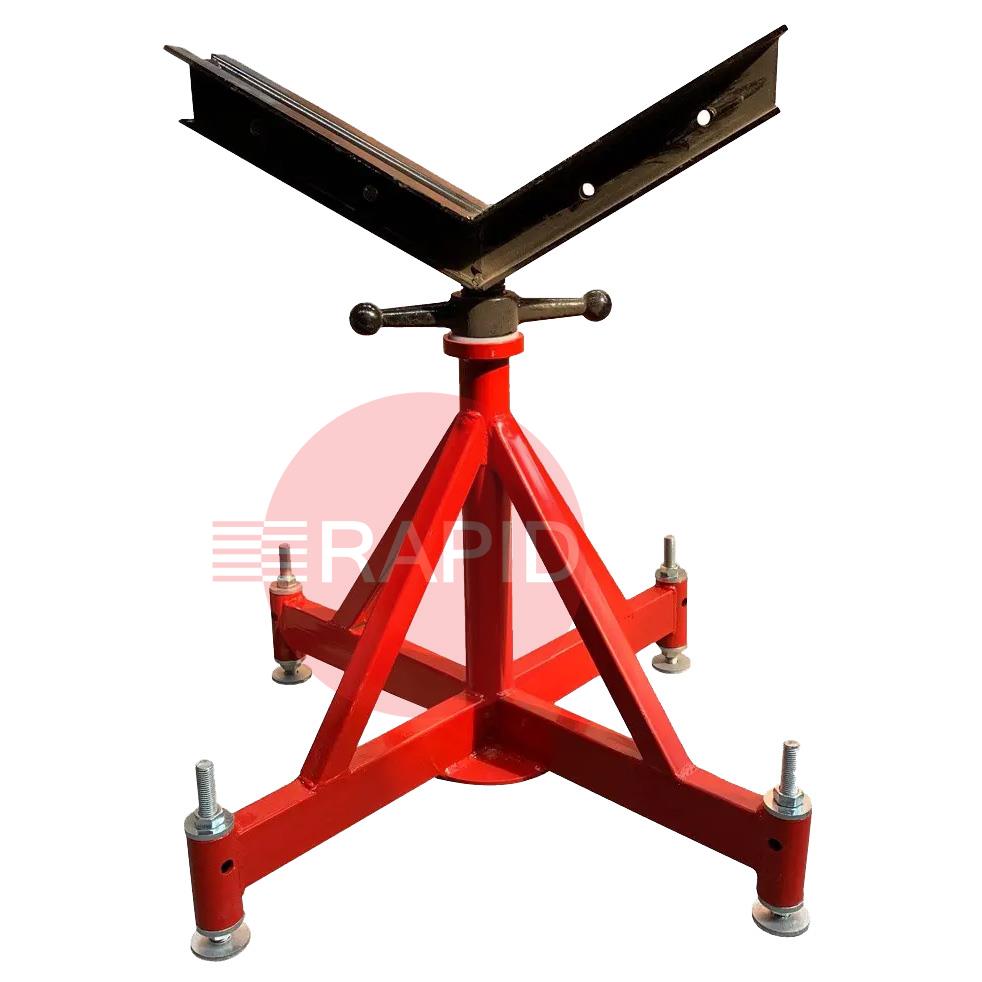

The large XXL, 305mm (12”), V-Head and heavy-duty four-legged design offers the welder a maximum margin of safety on pipes up to 900mm (36”). With optional accessories, such as the heavy-duty caster wheel and KP Chain Clamp Device, pipes weighing 2268Kg (5000lbs) per XXL Jack can be wheeled with ease from the storage rack to the welding bay and onto the shipping dock. This means the load is lifted only once! The Key Plant XXL-Jack safely handles large diameter pipe up to 900mm (36”). The 1¾” V-Head shaft permits the welder to position loads up to 2268Kg (5000lbs) with ease.
FEATURES
- Load Capacity: 2268Kg (5000lbs)
- Recommended diameter: up to 36″ (914mm)
- Height Range Jack Only: 609 – 914mm (24 – 36″)
- Height Range with Caster Wheel Kit: 813 – 1118mm (32 – 44″)
- Shipping Weight: 10.5Kg (23lbs)
- 5mm (1¾”) solid acme rod – fine thread adjustment
- Convenient adjustment handle
- CE Rated
- Extra Heavy-Duty Use
- Versatile (with caster wheel kit)
